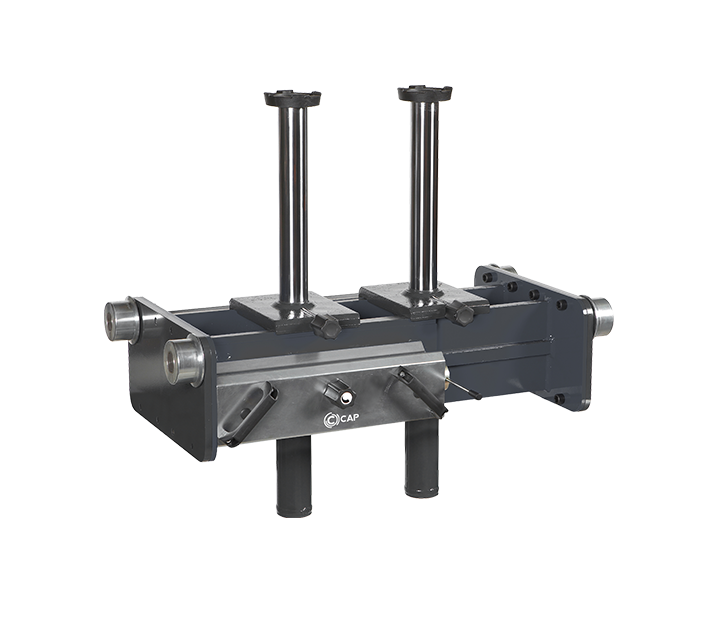

KPJ151-D
PIT JACKS
DESCRIPTION
Complete range of suspended or floor pit jacks. Ergonomic and modern design with work-height control-panel. The 2 individually controlled rams offer safe and balanced lifting.
APPLICATIONS
ARTICULATED TRUCKS
BUS
TRUCKS
AGRICULTURAL VEHICLES
TRAILERS
TRACTORS
TECHNICAL DATA
MODEL
KPJ151-D
CAPACITY
15 T
STROKE
420 mm
MIN. HEIGHT
525 mm
MAX. HEIGHT
945 mm
PRESSURE
8 — 12 bar
WIDTH
590 — 1410 mm
WEIGHT
350 kg
